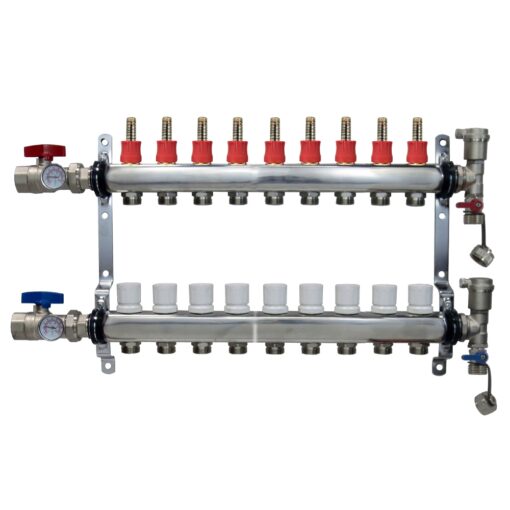

9 Loop Stainless Steel Radiant Heating Manifold
Quality Radiant Heating Manifold

These PEX GUY 9 Loop Stainless Steel Manifolds are produced with high quality stainless steel. It comes with 18 pcs of PEX Compression adapters.  This manifold can be used in radiant heating systems to distribute water or glycol to heat floors.  This PEX GUY Stainless Steel manifold is our most popular manifold for radiant heating applications and now comes with upgraded flow meters to improve the functionality and readability of flow.  The new two o-ring design allows for a more stable sealing performance.  The flow meter cap has also been revamped to improve user experience and also redesigned for simpler assembly and disassembly.  The see-through housing with marked flow rates on the flow meter has been upgraded to a thicker material, making it more durable.  All these upgrades allow for higher accuracy with the flow meter reading.

You may pick from 3/8″, 1/2″, 5/8″, 3/4″ or 1/2″ PEX-AL-PEX adapters from the menu.  All PEX adapters are included in the price, except for 3/4″ PEX adapters which are available at an additional cost.  If you are using 1/2″ PEX AL PEX (PEX-Aluminum-PEX) tubing, please select 1/2″ PEX AL PEX adapters.  All you need is an adjustable wrench to secure the compression adapters.

Specifications:

• • NSF Certified
  • Loops Supported: 9 loops
  • Measurement between ports is 2″ on center
  • High Quality/Durability Stainless Steel body
  • Inlet: 1″ Female NPT
  • Body/Trunk size: 1-1/4″
  • Max Flow reading per loop: 1.6 Gpm
  • Price includes adapters of your choice
  • Compatible with: PEX-A, PEX-B, and PEX-C
  • Dimensions (L x W x H): 27” x 3.5″ x 13.5″
  • Compatible with any brand of PEX manufactured to North American standard SDR-9 PEX tube
  • Do Not use with PB tube
  • Compatible with: PEX-A, PEX-B, and PEX-C

Includes:

• • 1 pc – Manifold balance section Body with flow meters
  • 1 pc – Manifold isolation section Body with Valves
  • 2 pcs – Automatic purge valves
  • 2 pcs – Manifold Isolation ball valve with 1″ NPT Pipe Connection
  • 2 pcs – Stem thermometer on each Manifold Isolation ball Valve
  • 18 pcs – PEX Compression Adapters
  • 2 pcs – Mounting brackets

* If you are looking for a different type or a manifold with different loops, you can view our different options in the Radiant Heating Manifold section of the store.

* Looking to pressure test your system?  Check out our Steel or Brass PEX Guy Pressure Test Kit.

* Need 2-wire or 4-wire Thermostatic Actuators and other accessories for this manifold?  You can view them on our Manifold Accessories page.
