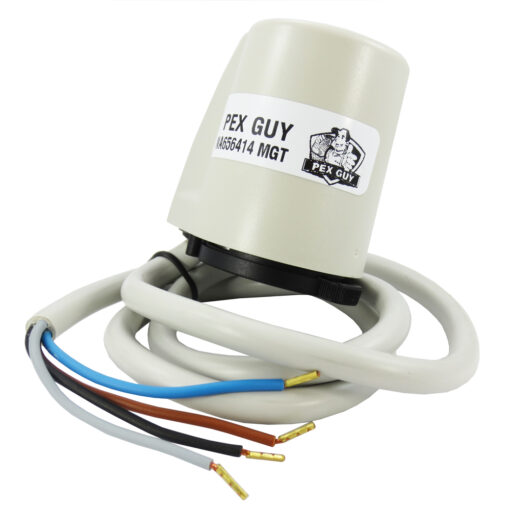

4-Wire PEX GUY 24V Thermostatic Actuator w/ Auxiliary Microswitch

24V PEX Guy 4-wire Thermostatic Actuator
w/ Auxiliary Microswitch

These 24V PEX Guy Thermostatic Actuators can be used with either the Deluxe Brass or Stainless Steel Manifold we carry.  This thermo-electric actuator, mounted to a zone valve or manifold, allows automatic shut-off of the medium under the control of the room thermostat or electrical switch.  The 6564 series features a low current draw, ideal during the start-up phase.  It is equipped with a valve opening/closing indicator, and a quick-coupling system with a retainer clip adapter for easy installation.  It also features NEMA 5 protection allowing upside-down installation.

24 Volt Thermostatic unit
4-wire configuration with auxiliary microswitch
Made in Italy
Specially designed manual coupler (designed to exclusively fit PEX Guy Rifeng brand manifolds sold by The PEX Superstore)

Specifications:

• Electric Supply: 230V (ac) – 24V (ac) – 24V (dc)
• Starting current: ≤ 250mA
• Running current:  230V (ac) = 15mA / 24V (ac) – 24V (dc) = 125 mA
• Running power consumption: 3 W

* Looking for a different actuator?  Check out the 2-wire Thermostatic Actuator in our store.

* Need a different manifold accessory?  You can see all that we carry in our Manifold Accessories section.

Return and Refund Policy

These actuators utilize a mounting ring that is specific to our manifolds.  We do not recommend using these actuators with a manifold purchased from another company, or vice versa, since we cannot guarantee that they will fit interchangeably.  Returns and refunds will not be issued for this item unless the customer is able to provide a proof of purchase for manifold(s) compatible with this actuator.
