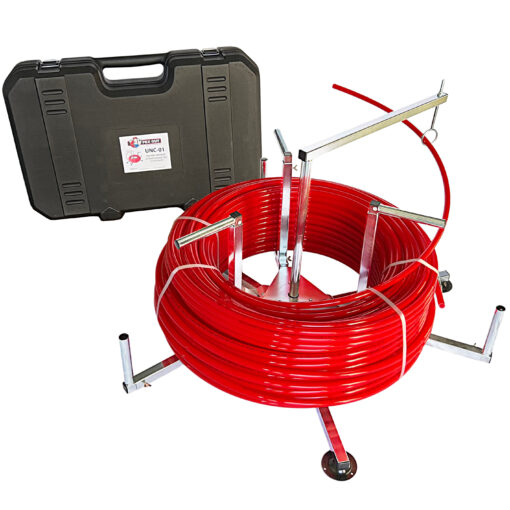

PEX GUY Uncoiler with Carrying Case
for Uncoiling 3/8-1 Inch PEX piping rolls
This is a genuine PEX GUY Uncoiler system for PEX Tubing. This set comes complete with everything you need to uncoil your PEX piping rolls from 3/8 inch PEX piping all the way up to 1 inch PEX piping hence it has all the things you need at a very great price. These uncoilers are designed with the user in mind, for this reason, it can be disassembled and packed nicely into it’s own heavy duty carrying case for air or land transportation to the job site. When assembled, the base can be folded to save space on the truck during transport without the need to disassemble. As a result, it makes installation easier and reduces labor. The base holds the tubing in place while uncoiling while he eyelet keeps the end of the PEX from coiling back for easier pull.Â
However, initial assembly required before first use.
Specifications:
-
- Product Weight including carrying case: 35 Pounds
- Dimension of case: 27 x 18 x 7 inches
- Folds up to 26 x 22 x 9 inches for easy and quick transportÂ
- For Radiant Heating and Plumbing PEX Tubing use
- Suitable for up to 1″ PEX Tubing
- Compatible with: PEX-A, PEX-B, and PEX-C
Size and Weight Specifications:
-
- PEX Roll Max Height: 24 inches, Min Inside Diameter: 13 inches, Max Outside Diameter: 58 inches
- Max PEX Weight 80 Lbs
- Maximum Size of uncoiler Footprint (arms extended): 62 x 62 x 29 inches
- Minimum Size of uncoiler Footprint (arms retracted): 42 x 42 x 22 inches
